MULTI-SPECTRAL DRONES for Precision Farming

MULTI-SPECTRAL DRONE

The Solution for Precision Farming.

The Multi-spectral Phantom is the new Analist Group Drone devised for all typical Precision Farming applications: Vegetation Classification, Identification of land types, Cultivations and their health condition, Analysis and Evaluation of forest fire, Identification of unauthorized landfills, Detection of asbestos etc.

The Multi-spectral Phantom includes a ready to fly 4 engine Drone, a TETRACAM Multi-spectral Camera, an image stabilizer for multi-spectral cameras and a Remote Control. The multi-spectral images are saved on a micro SD integrated in the camera.

Example of Result (Multispectral DRONE + Pix4Dmapper) ►

Request information ►

Phantom Multispectral Agriculture

When and where is Multi-spectral used?

Many uses and many functions.

Tabella
Vegetation Classification

Vegetation Classifiication and monitoring of its condition of health based on biophysics parameters and vegetation indexes. Request information ►

Tabella
Identification of land use, distinction and cultivation vegetative vigor.

Identification of land types and uses, vegetation and cultivations and their health condition. Request information ►

Tabella
Analysis and evaluation of woods fire

Identification and monitring of woods fire, interpretation analysis of fires in progress, evaluation of environmental impact of burned down and repopulated areas. Request information ►

Tabella
Identification of Landfills

Identification of unauthorized landfills. Request information ►

Tabella
Identification of asbestos

Detection, mapping and monitoring of asbestos. Request information ►

Tabella
Analysis thermal anomalies in water

Analysis of  thermal behaviour of surface waters, mapping of algal types and their spreading, monitorin of turbidity and colour of water, identification of paleochannels. Request information ►

Multi-Spectral Phantom

The most compact Farming Drone ever.

The MULTI-SPECTRAL PHANTOM includes a TETRACAM ADC Snap multi-spectral camera.

The Analist Group Solution has been devised to achieve the highest performance and to be compact and effective. Work in the Precision Farming industry is now available to everyone.

Flying is extremely simple with the new Phantom 2: stable, safe, out of the package ready to fly. Incredibly simple to pilot, even for the less experienced.

Processsing the images is very simple thanks to the PixelWrench2 software included. You can extract vegatative vigor indexes (NDVI), you can filter the multi-spectral frequencies and create professional reports in a very short time.

Request information ►

Example of Result (Multispectral DRONE + Pix4Dmapper) ►

What to choose: radiometric, non radiometric or multi-spectral thermal cameras?

Phantom Multispectral per l'Agricoltura di Precisione
TETRACAM-multispectral

TETRACAM ADC Snap

The Multi-spectral camera with elettronic global shutter.

The ADC Snap multi-spectral camera uses a fast electronic global shutter which shows the whole image at the same instant in time. This ensures the highest quality images free of motion, blur and other distortions. So it is possible to fly at a lower altitude and at a higher speed without losing the high image quality.



The CMOS sensor has larger pixels compared to the current standards; this ensures the best answer on the NIR (near-infrared).



Request information ►

Example of Result (Multispectral DRONE + Pix4Dmapper) ►

Fly, Shoot, Process.

Simple: image procesing software included.

The micro SD memory card is easily accessible by the user. All the multi-spectral images produced by the ADC Snap camera will be stored here.

The ADC Snap multi-spectral camera produces 1,3 Megapixel (1280×1024 pixels) images which are stored along with the metadata, such as the GPS coordinates and/or attitude information of the UAV (pitch, roll and yaw). The metadata helps users establish the ground location of each image.

Request information ►

Example of Result (Multispectral DRONE + Pix4Dmapper) ►

Multispectral microSD

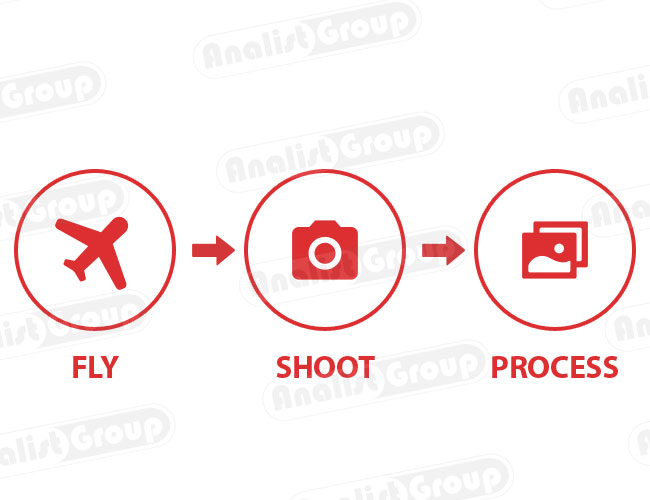

FLY-SHOOT-PROCESS

How it works

Fly, Shoot, Process.

Fly and take your photos. Transfer the images from the micro SD to your computer.

You can then open the images produced with PixelWrench2, the free software included with the TETRACAM multi-spectral camera.

PixelWrench2 enables you to “read” the images produced with the multi-spectral camera (which generates RAW and DCM files) it includes all features to extract vegetative vigor indexes (NDVI), in addition to other powerful processing tools in batch (multiple image processing in sequence) and a full range of multi-spectral images editing tools.

Request information ►

Example of Result (Multispectral DRONE + Pix4Dmapper) ►

Do you really know about all the advantages and uses of multi-spectral imaging in Precision Farming?

Automatic Guide

Programmable on iPads or PC

The MULTISPECTRAL Phantom can be flown from your device up to a 1,5 km distance. By installing the DJI APP you will be able to plan the flight, setting up to 16 WayPoints and monitoring all flight parameters. After setting the WayPoints, the UAV will follow the planned flight and it will return to take off point most safely. You can resume control at any time. Maximum flight precision, maximum safety.

Request information ►

Example of Result (Multispectral DRONE + Pix4Dmapper) ►

SoluzionI Termografiche con Drone

Do you need a versatile Solution?

New Phantom MAPIR.

If you need an accesible, affordable and versatile Solution for Precision Farming, the new Phantom MAPIR is what you are looking for. Its versatility, power and high standard results will impress you!

Find out more about the new Phantom MAPIR ►

MAPIR Precision Farming DRONE



Batteria-drone-phantom

Smart Battery

Safe and reliable

The LiPo (Lithium Polymer) 5200mAh battery, ensures up to 18 minutes flight time. The unique and innovative DJI battery, provides great data storage capacity, protection from overloading and downloading, in addition to maintanance reminder making this battery extremely safe and reliable.

The integrated battery compartment allows fast battery change to be ready to fly in just a few seconds.

Request information ►

Remote Control

Total Control.

The upgraded remote control comes with many new features. A gimbal controlo dial TRAINER PORT, an integrated recharcheable LiPo battery with a 2000mAh life, LED battery level indicators, altitude lock feature that offers position holding and stable hovering during landing are all included.

Use DJI Lightbridge to control your UAV or to connect the remote control to a computer with the TRAINER PORT to carry out simulations and improve your flying skills.

The new remote control is compatible with Phantom 2 Vision + and Phantom 2.

Request information ►

Radiocomando
Bussola-drone-dji

New Compass

Maximum flight security.

The new anti-static compass has been developed with a protective shell to help shield the Phantom in any flight conditions.

Request information ►

Improved Power

New engines, propellers and ESC.

With the new enhanced engines, the new propellers and the new ESC system, POWER AND CONTROL have improved incredibly. The new Phantom can reach up to 200g/arm of extra thrust (when using a 3S LiPo battery), ensuring easy management of a higher PAYLOAD.

Request information ►



elica-drone

Integrated GPS

Precision and stability.

An integrated automatic GPS piloting system ensures position and altitude lock with flight stability so that you can focus on shooting images.

Request information ►

GPS
mappa

Return-to-home

Automatic flight back to take off point feature.

If the Phantom and its controller are disconnected during flight, the system’s failsafe protection will activate, automatically telling the Phantom to fly back home and land safely.

It is also possible to manually set One Key Go Home to activate the automatic return home feature.



How to set up the automatic return home function ►



Request information ►

No fly zone

Safety first of all.

In order to increase flight safety and avoid accidental flights in restricted areas the new firmware for the Phantom 2 series includes a no fly zone feature.

When the Phantom is too close to a restricted area such as an airport, the system will not allow the UAV to fly. All flight functions will be disabled. You must move away from the restricted area (No Fly Zone) in order to fly.

Request information ►

no-fly-zone

FAQs

Frequently Asked Questions.

ico Question
HOW HIGH CAN MY Phantom MULTISPECTRAL FLY?

You can fly your Phantom MULTISPECTRAL up to approximately 800/900 m. Baring in mind that the flight up takes 6m/s and the descent 2m/s. At higher altitudes, the air gets thinner, which will make control more difficult. Please note that flying above that height will bring you into airspace with manned aviation such as helicopters and planes, and can be highly dangerous. However, depending on the type of application, there are different ideal altitudes: for Land Survey flights 50 meters or slightly above is enough; for Thermographic Inspection of Photovoltaic Panels Systems, a flight between 25 and 50 meters in altitude is ideal.

ico Question
HOW FAST DOES IT FLY?

It is capable of flying at a maximum speed of approximately 5m/s. The ideal speed however, depends on the type of application we use the drone for. In Photogrammetry, for example, the target is always clear and sharp footage. Theoretically the higher you fly, the faster you can go without blurry images. If you fly too near to your relief object at a high speed, there is the risk of blurry footage, which will negatively affect the quality of your Survey.

ico Question
HOW LONG CAN THE Phantom MULTISPECTRAL FLY?

When flying in good weather conditions at a speed of approximately 5m/s the battery life is of about 25/30 mins. The battery can be changed very quickly and easily thanks to the new integrated battery compartment. It is advisable to have one or two extra batteries for vast Survey areas.

ico Question
HOW MUCH WEIGHT CAN IT LIFT?

The Phantom MULTISPECTRAL is designed to be capable of carrying up a total of about 2 kilos of payload (like an action camera setup). This ready-to-fly set up has been specifically designed for immediate and efficient use. It has been tested for maximum stability and highest performance. Adding extra weight reduces flight time, stability and general efficiency.

ico Question
DOES IT WORK WITH ANDROID TABLETS AND PHONES?

YES. The Android software works with any device that has GPS and that can support an OTG cable and has 4.0 Android System or above. Android recommended: Samsung Galaxy S3, S4, Note 2, Note 3 or phones of similar configuration. Read the article ►

ico Question
CAN I USE IT WITH MY iOS™ DEVICE (IPHONE AND IPAD)?

Absolutely YES. iOS recommended: iPhone 4s, iPhone 5, iPhone 5s, iPhone 6, iPhone 6 Plus, iPod touch 5 (available but not recommended: iPad 3, iPad 4, iPad mini). Read the article ►

ico Question
WHAT IS THE “Return Home” Feature?

The Phantom MULTISPECTRAL Drone flies back to take off position in case of loss of control. The flight radar displays the current position of the Phantom MULTISPECTRAL in relation to the pilot. Exceeding the control range of the remote control will trigger ‘Return-to-Home’, that is if connection between the drone and the pilot is lost the Phantom MULTISPECTRAL will automatically fly back to its takeoff point and land safely.

ico Question
HOW MUCH WIND CAN IT FLY IN?

Flying a device this small in heavy wind conditions is always going to be a challenge. The Phantom MULTISPECTRAL with GPS enabled are designed to stay in place and they will do their best to maintain a set position. In our experience, we have been able to fly in winds of up to 15 km per hour without significant degradation of control. If there is a considerable amount of wind, it will put a heavier stress and load on the motors and batteries and your flight time will most likely be adversely affected. Read the article ►
